Brief Introduction on Sand Recycling Machine

MP TSS series sand recycling machine is designed based on Europe's advanced technology, together with our practical situation and comes up to the advanced world standard. It is widely utilized in quarry, the manufactured sand production line, the recovery and the environmental protection project (mud cleaning)and so on, and can solve fine sand collecting problems.

How TSS series works?

The sand recycling machine is mainly composed of motor, residue slurry pump, cyclone, vibrating screen, rinse tank and recycling box. The compound of sand and water is transported to the cyclone by the pump, and the fine sand after centrifugal classification concentration is provided to the vibrating screen by the grit setting mouth, after vibrating screen dewater, the fine sand and water are effectively separated. Through the recycling box, little fine sand and mud return again to the rinse tank, and then they are exhausted from the discharge hole when the rinse tank liquid level is too high. The material weight concentration recovered by the linear vibrating screen is more than 60%. Adjusting the fineness module can be realized by changing the pump rotating speed and pulp concentration, regulating the

overflow water yield and replacing the grit mouth, thus achieves its three functions washing, dewater and classification.

TSS Series Sand Recycling Machine Advantages

• Small volume, high capacity per unit area, easy layout
• The designed motor with high frequency, low-amplitude, and consumption suit to continuously work 24 hours a day
• Use V type screen desk design, low moisture content and high efficiency.
• The deck adopts a wear-resisting plate, which can prolong service life. Adopts modular and welded construction, it easy to replace.
• Reduces the time of random piling of fine material, and realizes direct transportation and market supplying.
• Different design for different customer requirement

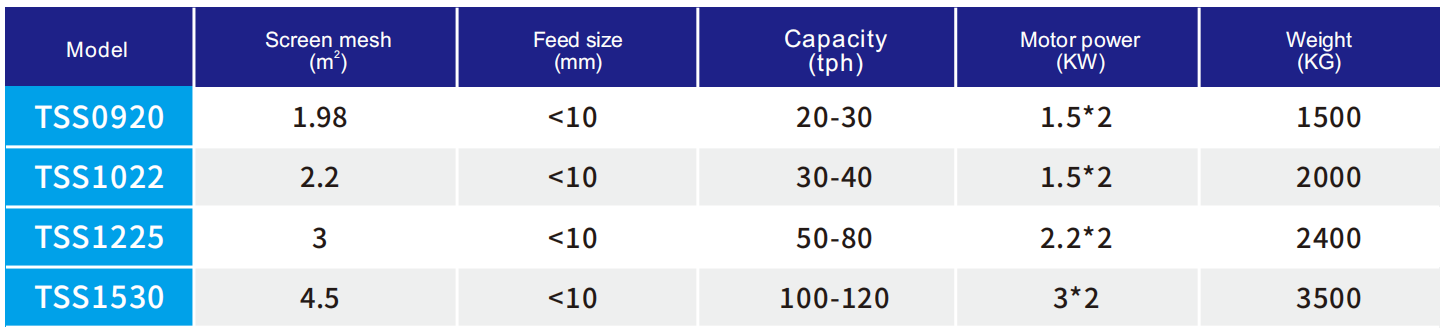

Specifications
