Zhejiang MP Mining Equipment Corp., Ltd. is one of the most credible manufacturers and suppliers of jaw crusher parts in China. Welcome to buy discount jaw crusher parts in stock here and get quotation from our factory. We also accept customized orders.
As a core component in the mining and crushing industry, the quality of jaw crusher parts directly impacts the overall performance of the machine. MP Mining Machinery specializes in the production of various crusher spare parts, with a particular focus on manufacturing high-wear-resistant crusher jaw dies (jaw dies), providing reliable crushing solutions for customers worldwide.

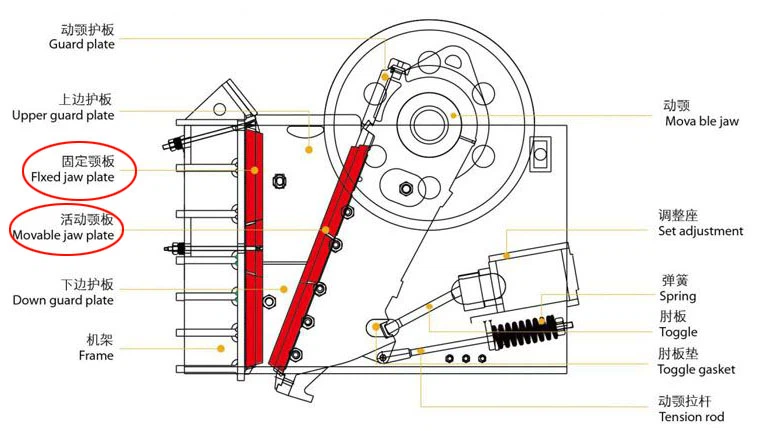

Jaw crushers are widely used in the primary crushing process in industries such as mining, building materials, and infrastructure. The crushing action occurs between two high-manganese plates, regardless of whether they have "teeth" or not. These teeth are referred to as the jaw plates or jaw dies:

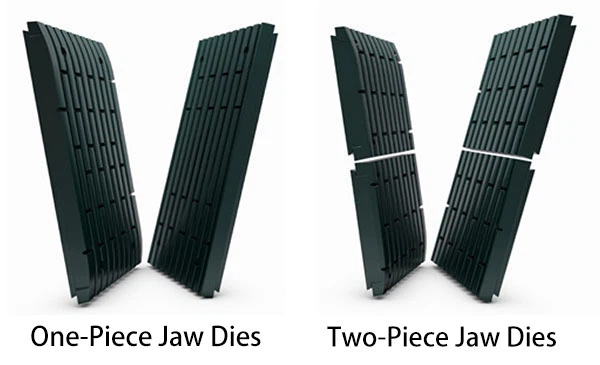

● Fixed Jaw Plate: Vertically installed on the front wall of the frame, forming the static working surface of the crushing chamber. It comes in two designs: one-piece and split, both of which are highly reliable.
● Movable Jaw Plate: Driven by an eccentric shaft, it connects with the toggle plate to form the dynamic crushing surface. The movable jaw comes in two designs: one-piece and split, and is made from high-manganese steel.
These two components create a wedge-shaped crushing chamber that achieves an efficient "large feed, small discharge" crushing mode. High-quality crusher jaw dies significantly improve the crushing ratio and extend the life of the equipment.
● Faster jaw die replacement – reduces downtime
● Fewer parts – no need for a center wedge
● Easy to install – suitable for maintenance in limited spaces and mobile applications
● Longer expected service life (when replaced as recommended)
● Reduced waste rate and cost per ton
● Equipped with standard lifting tools for the crusher
● By rotating the jaw dies as recommended, a good bite angle can be achieved

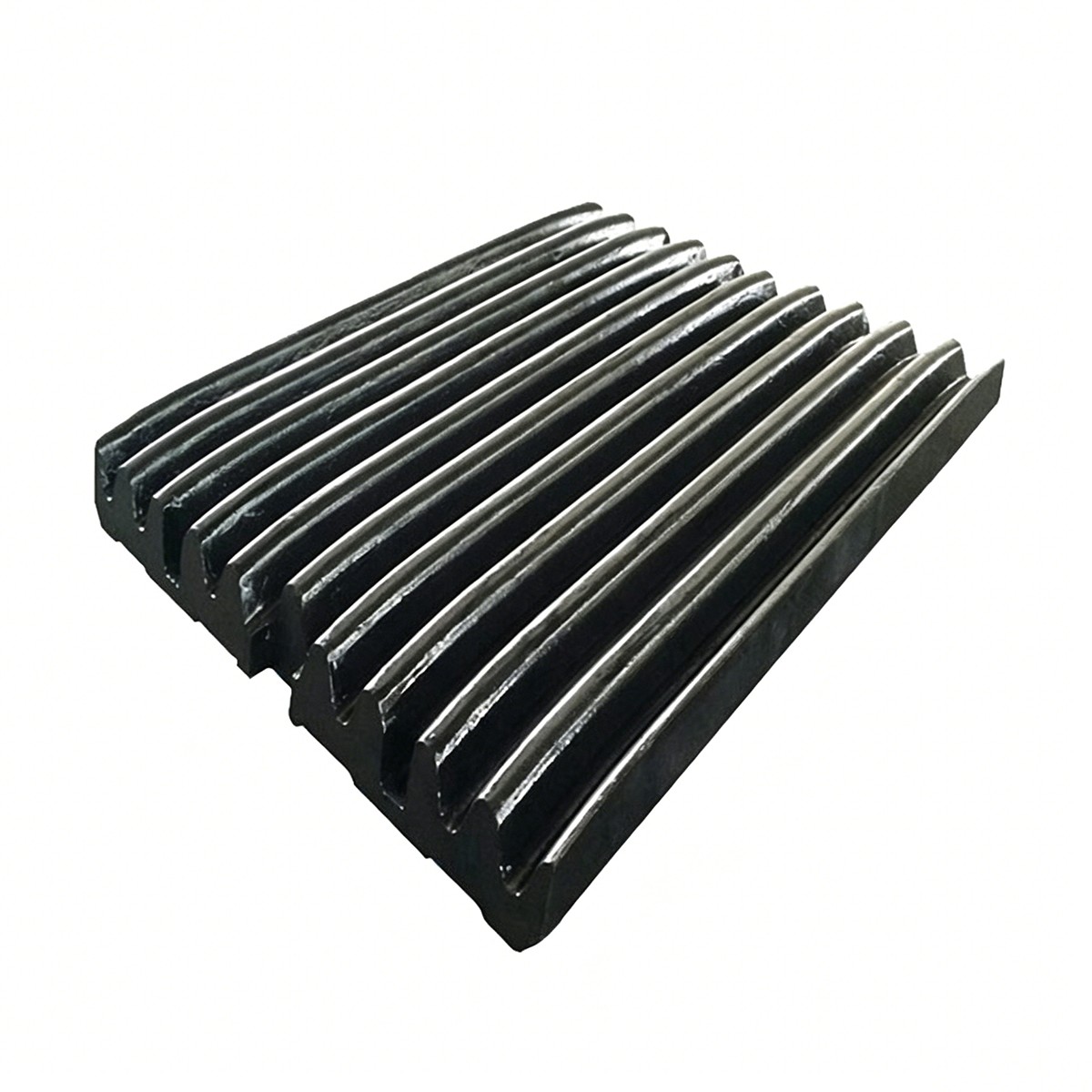

Jaw plates and cheek plates are the most common wear parts and need frequent replacement. MP Mining Machinery manufactures jaw plates in various tooth shapes and materials based on your requirements.
Typical metallurgical options:
● Jaw Crusher Plate Material: Mn13Cr2, Mn18Cr2, Mn22Cr2
Jaw crusher parts can also be customized with special requests, such as titanium carbide inserts or added molybdenum, among other options.
We maintain the heat treatment records and chemical composition reports for every jaw plate we manufacture, ensuring traceable quality and reliable support for your machines.
Advantages of Our Jaw Plate Manufacturer
Extensive product supply
● Choose from custom designs or ready-made wear parts
● Competitive lead times
Technical Services
● Chamber drawings and analysis
● Assistance with alloy selection
● Chamber optimization
Crushing Expertise
● 10+ years of casting expertise
● In-house engineering
● In-house metallurgy
● Global manufacturing and on-site support
We provide OEM-quality jaw crusher parts alternatives for the following brands:
✓ Sandvik ✓ Metso ✓ Terex ✓ Pegson ✓ Pioneer ✓ Telsmith ......
Get Your Exclusive Solution Now:
Please provide your equipment model and working conditions, and our engineers will recommend the best crusher spare parts configuration within 2 hours, along with chamber optimization suggestions.
Q: What is a jaw die?
A: They use compressive force to break material between a stationary piece of steel (called a jaw die) and a moving piece of steel that together create a V-shaped cavity called the crushing chamber.
Q: Jaw plate bolts loosening or breaking problem
A: Loosening or breaking of jaw plate bolts may result from incorrect installation of jaw dies. To fix this issue, contact Qiming Casting for the proper jaw plates or reinstall the jaw dies.
Q: What is the chemical composition of the jaw plate?
A: In general, jaw plates are made of high manganese steel which is the dominant wear material. High manganese steel is also known as Hadfield manganese steel, a steel whose manganese content is very high and which possesses austenitic properties.
