Gyratory Crusher Spare Parts
Mantle and Spider Liner and Rim Liner are main wearing spare parts for gyratory crusher, MP Mining can supply plenty of mantle models for gyratory crusher. For the material of mantle, we use the high quality manganese, like Mn13Cr2, Mn14Cr2, Mn18Cr2, etc... to ensure the wear resistance.

Zhejiang MP Mining Equipment Corp., Ltd. is one of the most credible manufacturers and suppliers of gyratory crusher spare parts in China. Welcome to buy discount gyratory crusher spare parts in stock here and get quotation from our factory. We also accept customized orders.

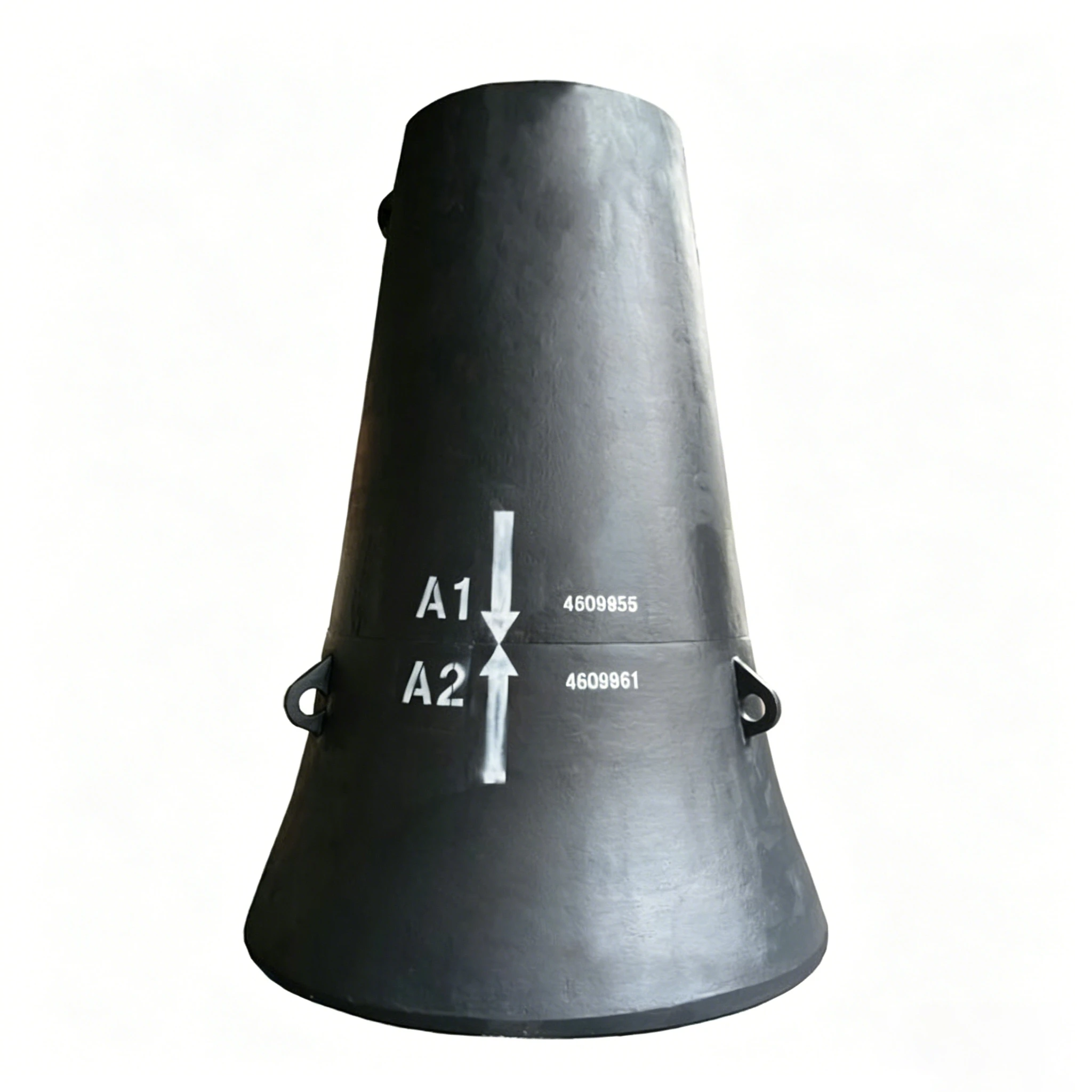

Gyratory mantle for CR810/08-10 Gyratory crusher

Mantle and Spider Liner and Rim Liner are main wearing spare parts for gyratory crusher, MP Mining can supply plenty of mantle models and gyrator crusher spare parts for gyratory crusher. For the material of mantle, we use the high quality manganese, like Mn13Cr2, Mn14Cr2, Mn18Cr2, etc... to improve the wear resistance. Our gyratory crusher spare parts are widely used on mining, building materials,construction and metallurgical industry. After the modification treatment, combining with the special process techniques, the products have a service life 10-15% longer than traditional ones.



Product Features:

Material

High manganese steel and customized components

Brand

MP Mining

Testing

Support metallographic, machinery performance,hardness,ultrasonic inspection, coloring flaw testing, ultrasonic flaw testing



Jaw and Gyratory crusher

Service Models

Cone Crusher

GP100/100S GP200/200S GP300/P300S GP500/500S GP220/GP550/GP11F



HP100/HP200/HP300/HP400/HP500/HP700/HP800/HP4/HP5/HP6

Jaw Crusher

C63/C80/C95/C96/C100/C105/C106/C110/C125/C140/C145/C160/C200

VSI

B6150/B7150/B9100

Cone Crusher

CH420/CH430/CH440/CH660/CH870/CH880/CS420/CS430/CS440/CS660

Jaw Crusher

CJ408/CJ409/CJ411/CJ612/CJ613/CJ615/CJ815

VSI

CV117/CV118/CV129/CV217/CV218/CV219



Our Manganese Chemical Components for your reference:



Mn (%)

C (%)

Cr (%)

P (%)

S (%)

Si (%)

Mn13Cr2

11-14

1.15-1.25

1.5-2.5

≤0.05

≤0.04

0.3-0.8

Mn18Cr2

17-19

1.15-1.3

1.5-2.5

≤0.05

≤0.04

0.3-0.8

Mn22Cr2

21-23

1.1-1.4

1.5-2.5

≤0.05

≤0.04

0.3-0.8



Product Show:
