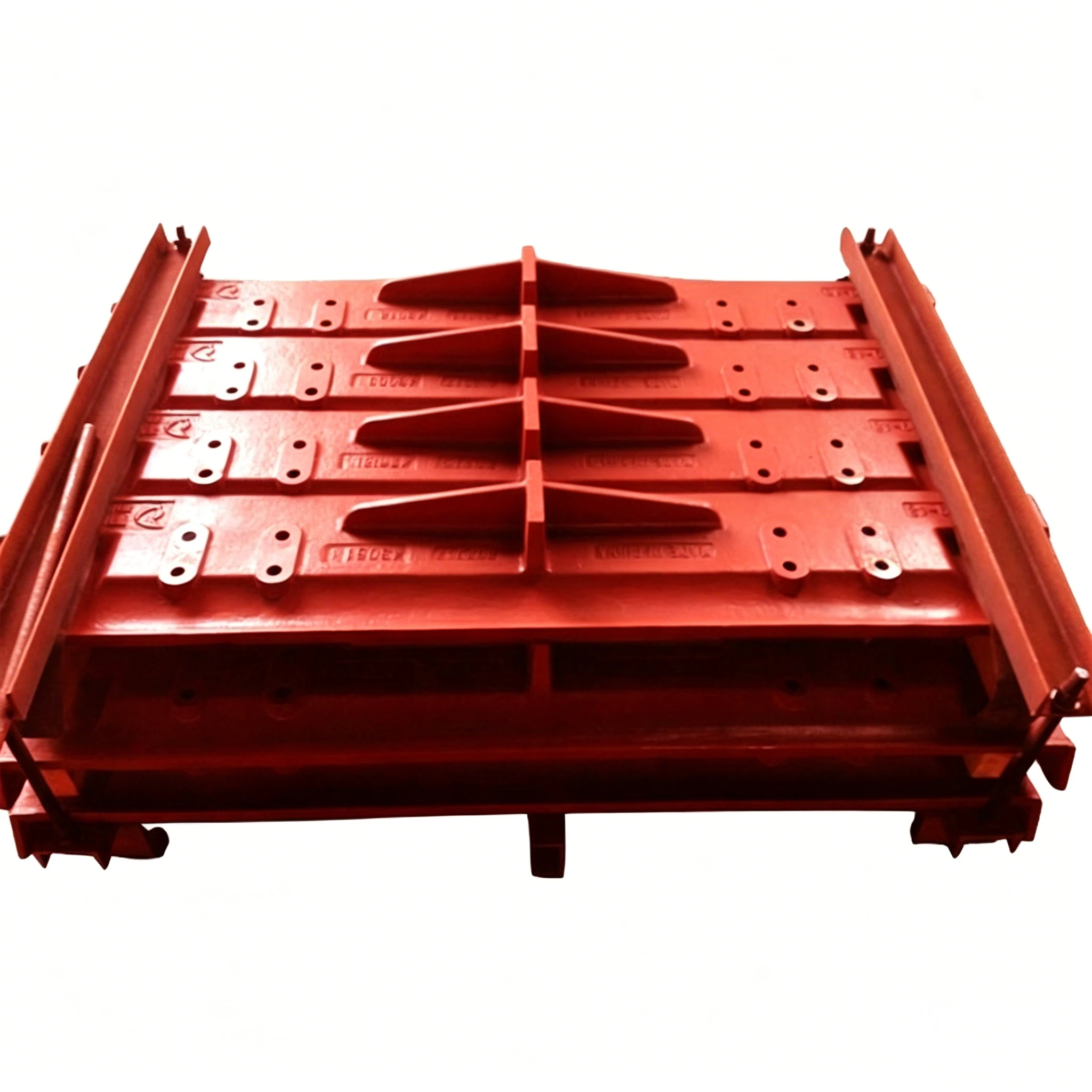

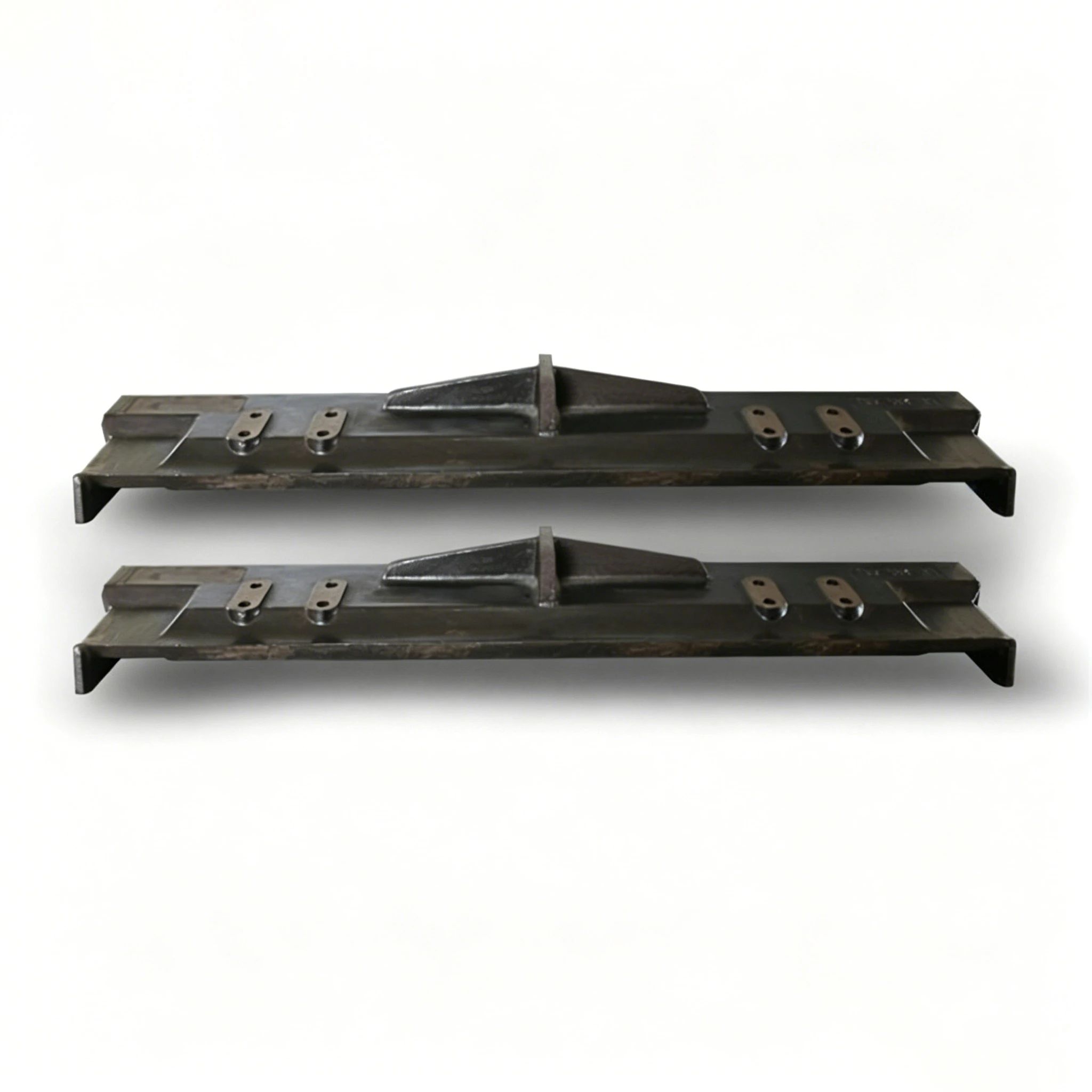

Manganese & Alloy Steel Apron Feeder Pans

As a key component of heavy material handling systems, the Apron Feeder Pans is designed for extreme working conditions, suitable for high-impact, moist freezing, and large abrasive ores, among other harsh environments. MP Mining Machinery offers a dual-line product matrix with manganese steel Apron Feeder Pans and alloy steel Apron Feeder Pans, covering 90% of industrial scenario needs. The manganese steel series plate feeder chain plate is widely used in hard abrasive processing fields.

Zhejiang MP Mining Equipment Corp., Ltd. is one of the most credible manufacturers and suppliers of manganese / alloy steel apron feeder pans in China. Welcome to buy discount manganese / alloy steel apron feeder pans in stock here and get quotation from our factory. We also accept customized orders.

Apron Feeder professional manufacturer

1. Core Product Positioning

As a key component of heavy material handling systems, the Apron Feeder Pans is designed for extreme working conditions, suitable for high-impact, moist freezing, and large abrasive ores, among other harsh environments. MP Mining Machinery offers a dual-line product matrix with manganese steel Apron Feeder Pans and alloy steel Apron Feeder Pans, covering 90% of industrial scenario needs. The manganese steel series plate feeder chain plate is widely used in hard abrasive processing fields.

2. Material Performance Comparison

Comparison Dimension	Manganese Steel Apron Feeder Pans	Alloy Steel Apron Feeder Pans
Surface Hardness	Initial 400 BHN, reaches 550 HB after impact	Stable at 480-520 HB (high-temperature resistance)
Impact Toughness	AKU ≥150J (self-hardening increases by 30%)	AKU 80-100J (strong structural stability)
Applicable Temperature	-30℃ ~ 400℃	-50℃ ~ 650℃ (special coating technology)
Typical Service Life	8,000-12,000 hours	10,000-15,000 hours
Economic Efficiency	Comprehensive cost as low as 0.12 CNY/ton·hour	High initial investment but 30% lower maintenance cost

Technical Highlights:

● Impact Hardening Technology: Manganese steel Apron Feeder Pan materials continuously self-harden during operation, with surface hardness increasing by 2-3% weekly.

● Thermal Stability Architecture: Alloy steel Apron Feeder Pans use a gradient quenching process, with strength retention rate >92% at 600°C operating temperatures.

● Modular Design: Apron Feeder Pan Plate feature quick disassembly and assembly, improving replacement efficiency by 40% (patented buckle structure).

3. Innovative Manufacturing Process System

● Vacuum Forming Casting Technology

◎ Utilizes digital precision lost-wax casting to achieve ±0.5mm dimensional accuracy, reducing porosity defects by 80% compared to traditional methods.

● Five-Stage Heat Treatment Process

◎ Gradient Heating: Controlled temperature rise at 100°C/h to prevent cracking.

◎ Dual Solid Solution: 1050°C × 4h + 1100°C × 2h for grain refinement.

◎ Quenching in Cold Water: 45°C turbulent water curtain for instantaneous phase transition strengthening.

● Intelligent Detection System

◎ Online Spectral Analysis: Real-time monitoring of elements like C, Mn content.

◎ 3D Laser Scanning: 100% full-size tolerance inspection.

◎ Digital Verification: Stress distribution prediction after 200,000 impacts through simulation.

4. Strict Quality Control Standards

Material Traceability System

◎ Manganese Steel Apron Feeder Pans Material: Conforms to GB/T 5680-2010 premium manganese steel standard (Mn13Cr2).

◎ Alloy Steel Apron Feeder Pans Material: Meets ASTM A128 Gr.D certification.

Six-Level Testing Process

Testing Phase	Testing Items
Raw Materials	Metallographic structure/inclusion analysis
Casting Process	Real-time X-ray inspection
Post Heat Treatment	Bending test (90° no fracture)
Machining	Flatness test (≤0.1mm/m²)
Finished Product	3D profile scanning comparison
Load Test	Continuous overload test for 100 hours at 20%

5. Typical Application Scenarios

Scenario 1: Iron Ore Crushing Line

◎ Pain Point: Iron ore with an abrasion index (AIV) >16, traditional chain plates fail within 3 months.

◎ Solution: Use manganese steel Apron Feeder Pans with skirt design to prevent leakage.

◎ Outcome: Service life extended to 9 months, energy consumption per ton reduced by 0.8 kWh.

Scenario 2: Metallurgical High-Temperature Slag Handling

◎ Pain Point: 650°C furnace slag causes deformation of ordinary steel plates.

◎ Solution: Use alloy steel Apron Feeder Pans with ceramic composite coating.

◎ Outcome: Continuous operation temperature tolerance increased to 700°C, maintenance cycle extended by 3 times.

MP Mining Machinery provides an integrated solution for Apron Feeder Pan design, manufacturing, and maintenance:

Industry Certification:

◎ CE certification (EN 10028-7:2016)

◎ ISO 9001:2015 Quality Management System Certification

Technology Iteration:

◎ Introduced bimetallic composite Apron Feeder Pans (working surface HARDOX600 + base manganese steel), improving impact and wear resistance by 50%.

For the "Apron Feeder Pans Selection White Paper" and customized solutions, please contact the MP Mining Machinery technical team, offering 24-hour online selection calculation services.
